Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,841HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 4841Original colors & callouts · Select to enlarge

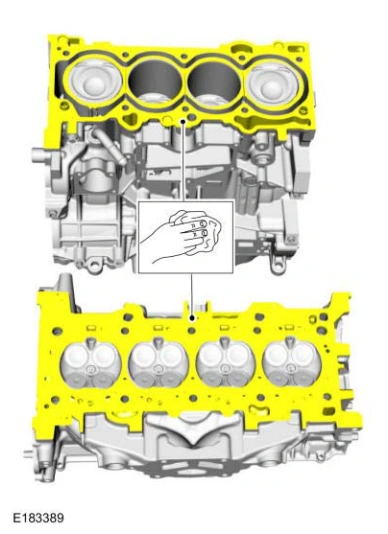

104. Check the cylinder block distortion. Refer to: Cylinder Block Distortion .

Check the cylinder head distortion. Refer to: Cylinder Head Distortion .

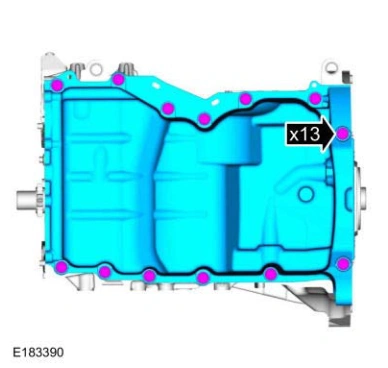

105. Remove the bolts and the oil pan.

Engine — original illustration 2, reference 4841Original colors & callouts · Select to enlarge

106. Remove the bolts and the oil pump screen and pickup tube.

Ford_Mustang_all_2015-2017.pdf · source reference 4841
