Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,834HTML edition
← Chapter contentsManual collection

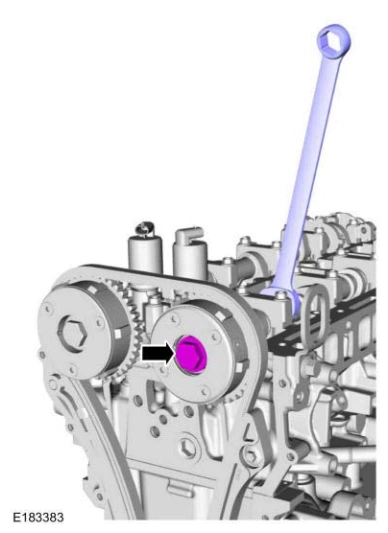

Engine — original illustration 1, reference 4834Original colors & callouts · Select to enlarge

88.

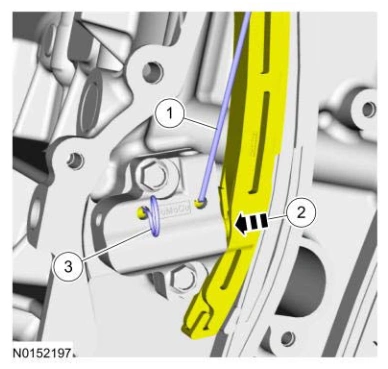

1. Using a small pick, release and hold the ratchet mechanism.

2. While holding the ratchet mechanism in the released position, compress the tensioner by pushing the timing chain arm toward the tensioner.

3. Insert a holding pin into the hole to retain the tensioner.

Engine — original illustration 2, reference 4834Original colors & callouts · Select to enlarge

89.
