damage is evident, replace the diamond washer. If no damage, the diamond washer is to be reused during installation. If the diamond washer is not installed, engine damage may occur.

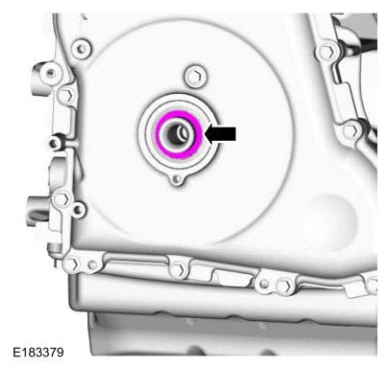

82. If the diamond washer did not come off with the crankshaft pulley, remove the diamond washer.

Engine — original illustration 1, reference 4831Original colors & callouts · Select to enlarge

NOTE: Use care not to damage the engine front cover or the crankshaft when removing the seal.

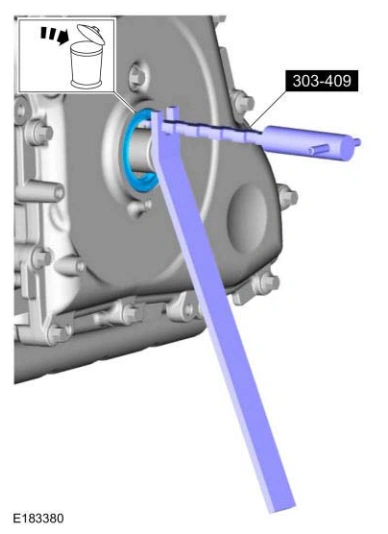

83. Using the crankshaft seal remover, remove the crankshaft front seal and discard.

Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.

Engine — original illustration 2, reference 4831Original colors & callouts · Select to enlarge
