Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4830

Engine — original illustration 1, reference 4830Original colors & callouts · Select to enlarge

NOTE: The crankshaft must remain in the TDC position during removal of the pulley bolt or damage to the engine can occur. Therefore, the crankshaft pulley must be held in place with the Strap Wrench and the bolt should be removed using an air impact wrench (1/2-in drive minimum).

NOTE: The crankshaft sprocket diamond washer may come off with the crankshaft pulley.

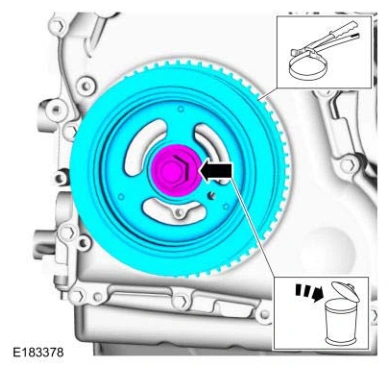

81. Using a strap wrench, remove the bolt and the crankshaft pulley.

Use the General Equipment: Strap Wrench

Discard the bolt and washer.

Engine — original illustration 2, reference 4830Original colors & callouts · Select to enlarge

NOTE: The crankshaft sprocket diamond washer may come off with the crankshaft pulley. The diamond washer should be cleaned and inspected for any damage. If
