Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4827

Engine — original illustration 1, reference 4827Original colors & callouts · Select to enlarge

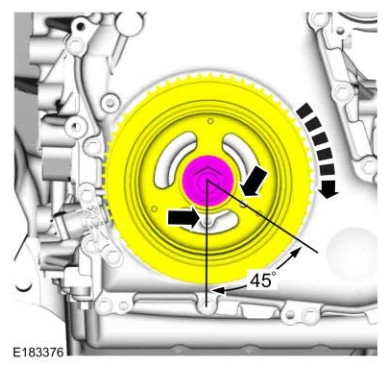

75. Turn the crankshaft clockwise until the No. 1 piston is 45 degrees BTDC using the guide holes on the engine front cover and the crankshaft pulley.

Engine — original illustration 2, reference 4827Original colors & callouts · Select to enlarge

76. Remove the bolts and the CKP sensor.
