Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,828HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 4828Original colors & callouts · Select to enlarge

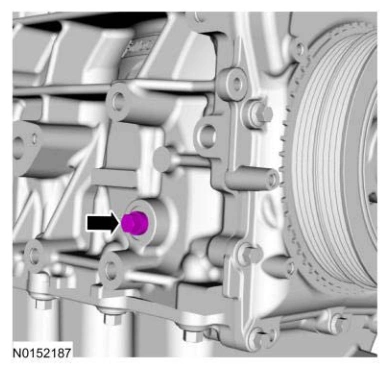

77. Remove the engine plug bolt.

Engine — original illustration 2, reference 4828Original colors & callouts · Select to enlarge

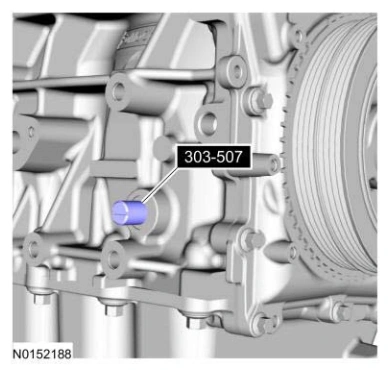

78. Install Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

Engine — original illustration 3, reference 4828Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 4828

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
