Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,825HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 4825Original colors & callouts · Select to enlarge

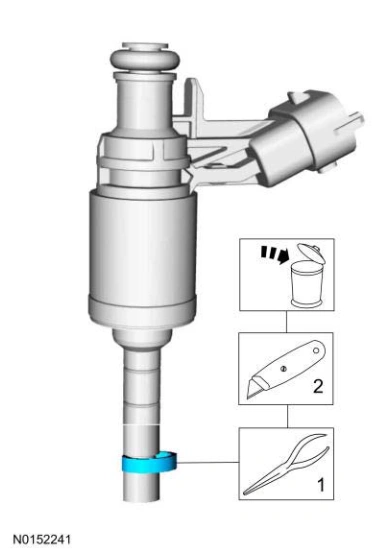

71. Remove and discard the fuel injector seal and O-ring seal.

Engine — original illustration 2, reference 4825Original colors & callouts · Select to enlarge

72. Remove the bolts and camshaft rear bearing cap.

Ford_Mustang_all_2015-2017.pdf · source reference 4825

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
