Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,823HTML edition
← Chapter contentsManual collection

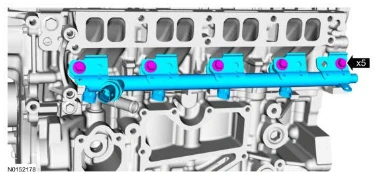

Engine — original illustration 1, reference 4823Original colors & callouts · Select to enlarge

67. Remove any of the fuel injectors that remained in the fuel rail.

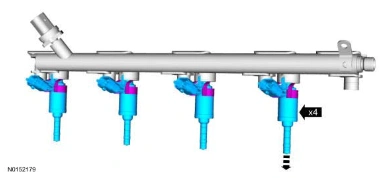

Engine — original illustration 2, reference 4823Original colors & callouts · Select to enlarge

68. Remove any of the fuel injectors that remained in the cylinder head.

Use Special Service Tool: 307-005 (T59L-100-B) Slide Hammer, 310-206 Remover, Fuel Injector.

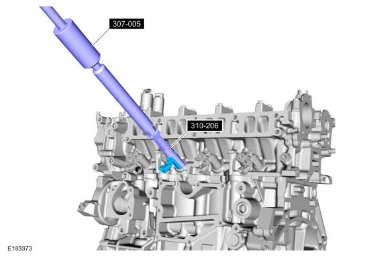

Engine — original illustration 3, reference 4823Original colors & callouts · Select to enlarge

69. Remove the fuel injector clip.
