Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,821HTML edition
← Chapter contentsManual collection

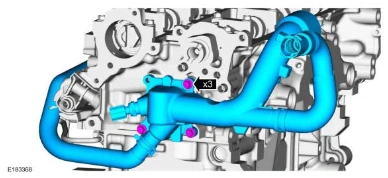

Engine — original illustration 1, reference 4821Original colors & callouts · Select to enlarge

62. Remove and discard the coolant outlet gasket.

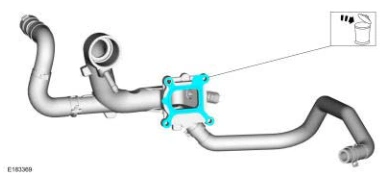

Engine — original illustration 2, reference 4821Original colors & callouts · Select to enlarge

63. Disconnect the KS electrical connectors.

NOTE: Note the position of the KS for installation.

Remove the bolts and the KS.

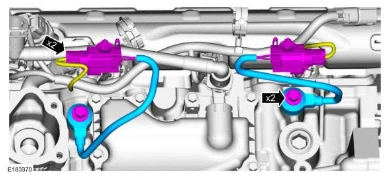

Engine — original illustration 3, reference 4821Original colors & callouts · Select to enlarge

64. Remove the bolts and the crankcase vent separator.

Ford_Mustang_all_2015-2017.pdf · source reference 4821
