Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,820HTML edition
← Chapter contentsManual collection

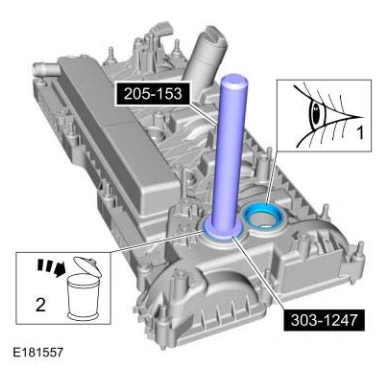

Engine — original illustration 1, reference 4820Original colors & callouts · Select to enlarge

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.

59. Make sure that the mating faces are clean and free of foreign material.

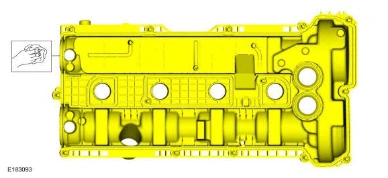

Engine — original illustration 2, reference 4820Original colors & callouts · Select to enlarge

60. Disconnect the coolant tube and the retainers.

Use the General Equipment: Hose Clamp Remover/Installer

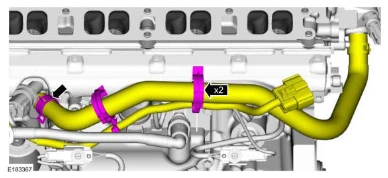

Engine — original illustration 3, reference 4820Original colors & callouts · Select to enlarge

61. Remove the bolts and the coolant outlet.

Ford_Mustang_all_2015-2017.pdf · source reference 4820
