Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,818HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 4818Original colors & callouts · Select to enlarge

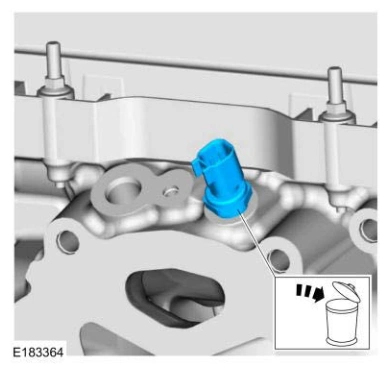

54. Remove and discard the CHT sensor.

Engine — original illustration 2, reference 4818Original colors & callouts · Select to enlarge

NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.

55. Remove the bolts, stud bolts and the ignition coil-on-plugs.
