Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,816HTML edition
← Chapter contentsManual collection

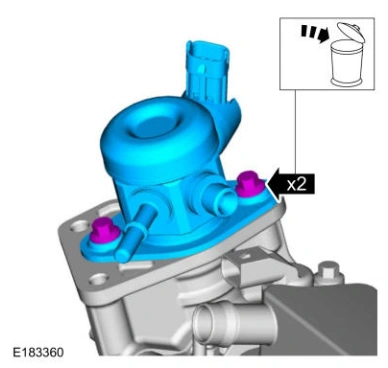

Engine — original illustration 1, reference 4816Original colors & callouts · Select to enlarge

50. Remove and discard the high-pressure fuel pump O-ring seal.

Engine — original illustration 2, reference 4816Original colors & callouts · Select to enlarge

51. Rotate the crankshaft to position the camshaft at zero lift.

Ford_Mustang_all_2015-2017.pdf · source reference 4816

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
