Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,813HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 4813Original colors & callouts · Select to enlarge

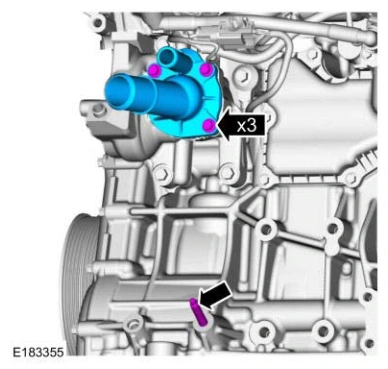

44. Remove the bolts and the thermostat housing.

Remove the generator stud.

Engine — original illustration 2, reference 4813Original colors & callouts · Select to enlarge

45. Remove the bolt and the ground strap.

Ford_Mustang_all_2015-2017.pdf · source reference 4813
