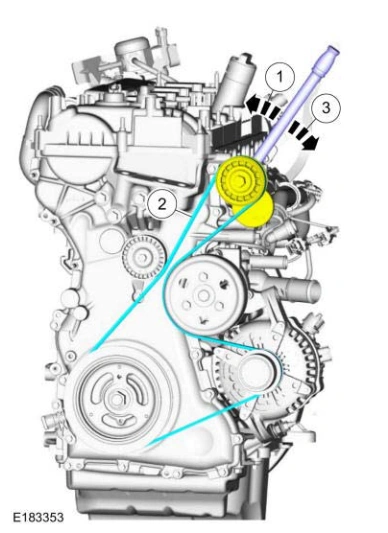

1. Install the tool and release the tension on the accessory drive belt tensioner.
2. Remove the accessory drive belt.
3. Release the tool and remove.
41. Remove the bolts and the accessory drive belt tensioner.
Remove the bolts and coolant pump pulley.
Remove the nut, bolts and the generator.
