Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,808HTML edition
← Chapter contentsManual collection

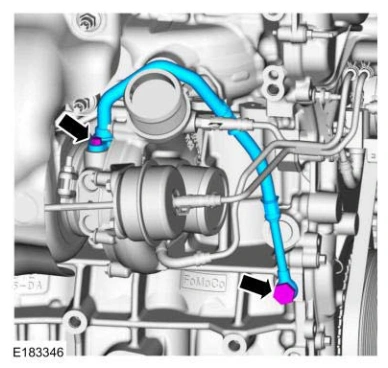

Engine — original illustration 1, reference 4808Original colors & callouts · Select to enlarge

33. Remove and discard the washers and O-ring seal.

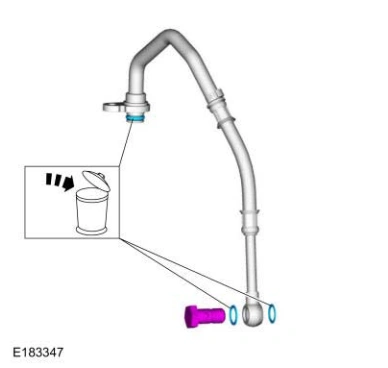

Engine — original illustration 2, reference 4808Original colors & callouts · Select to enlarge

34. Remove and discard the oil supply filter.

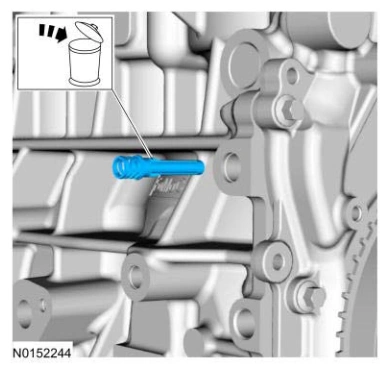

Engine — original illustration 3, reference 4808Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 4808
