Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,806HTML edition
← Chapter contentsManual collection

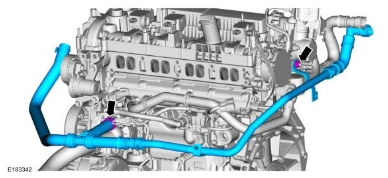

Engine — original illustration 1, reference 4806Original colors & callouts · Select to enlarge

28. Disconnect the radiator hose from the thermostat housing.

Use the General Equipment: Hose Clamp Remover/Installer

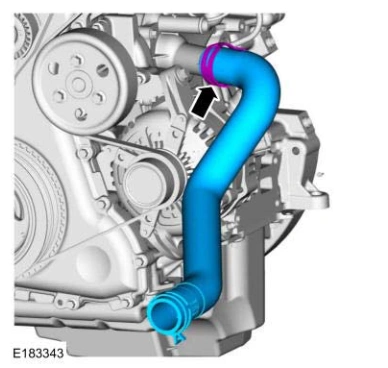

Engine — original illustration 2, reference 4806Original colors & callouts · Select to enlarge

29. Disconnect the turbocharger coolant hose from the coolant outlet.

Use the General Equipment: Hose Clamp Remover/Installer

Remove the bolts and the turbocharger coolant tubes.

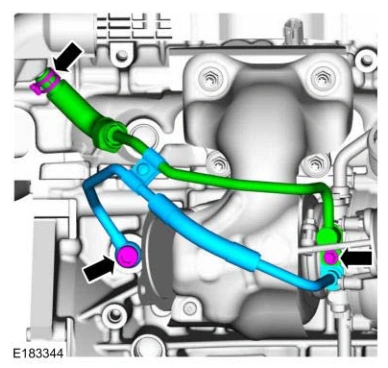

Engine — original illustration 3, reference 4806Original colors & callouts · Select to enlarge

30.

Ford_Mustang_all_2015-2017.pdf · source reference 4806
