Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,807HTML edition
← Chapter contentsManual collection

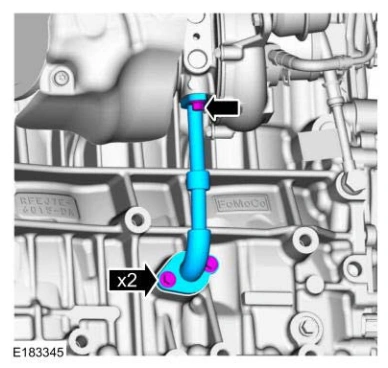

Remove the bolts and the turbocharger-to-cylinder block oil return tube.

Engine — original illustration 1, reference 4807Original colors & callouts · Select to enlarge

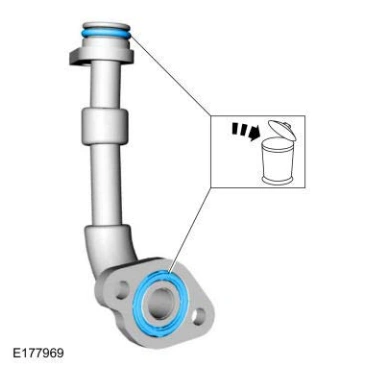

31. Remove and discard the O-ring seal and gasket.

Engine — original illustration 2, reference 4807Original colors & callouts · Select to enlarge

32. Remove the bolts and the cylinder block-to-turbocharger oil supply tube.

Ford_Mustang_all_2015-2017.pdf · source reference 4807
