Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,809HTML edition
← Chapter contentsManual collection

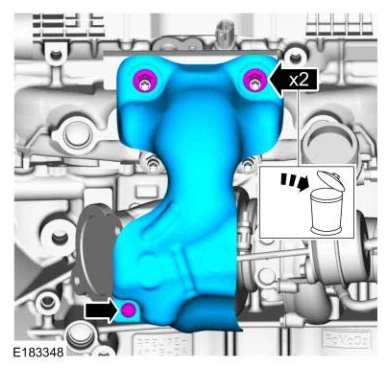

35. Remove the nuts, bolt and the heat shield.

Discard the nuts.

Engine — original illustration 1, reference 4809Original colors & callouts · Select to enlarge

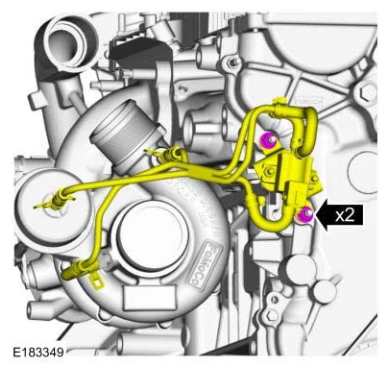

36. Remove the nuts, turbocharger vacuum valve and position aside.

Engine — original illustration 2, reference 4809Original colors & callouts · Select to enlarge

37. Remove the nuts and the turbocharger.

Discard the nuts.
