Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,810HTML edition
← Chapter contentsManual collection

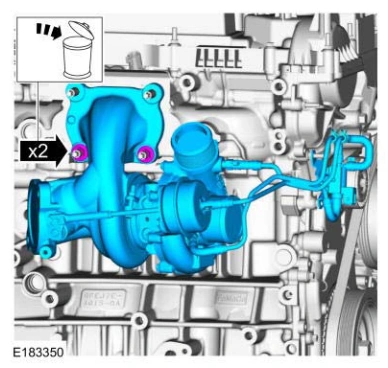

Engine — original illustration 1, reference 4810Original colors & callouts · Select to enlarge

38. Remove and discard the studs and gasket.

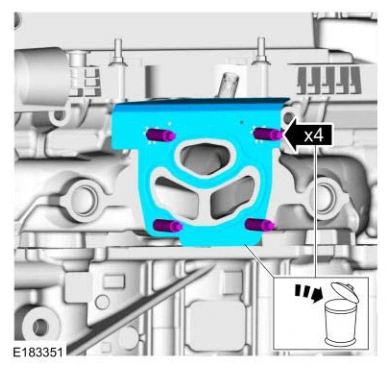

Engine — original illustration 2, reference 4810Original colors & callouts · Select to enlarge

39. Loosen the coolant pump pulley bolts.

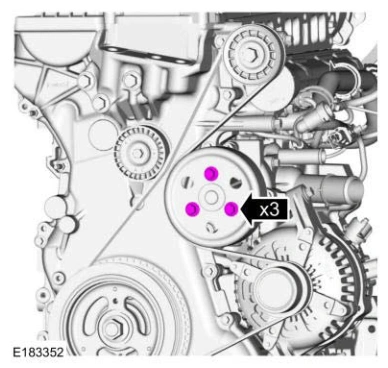

Engine — original illustration 3, reference 4810Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 4810
