Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4812

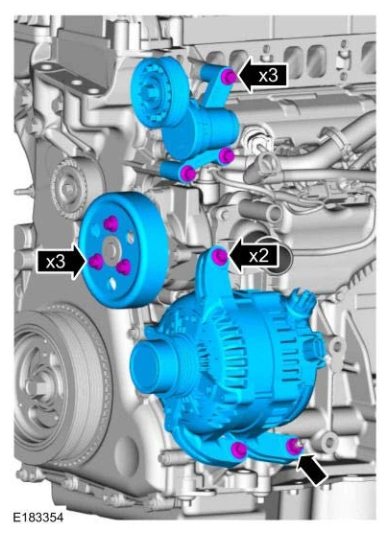

Engine — original illustration 1, reference 4812Original colors & callouts · Select to enlarge

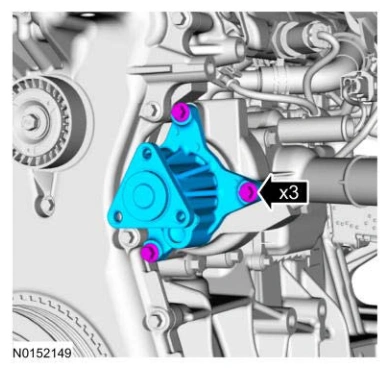

42. Remove the bolts and the coolant pump.

Engine — original illustration 2, reference 4812Original colors & callouts · Select to enlarge

43. Remove and discard the coolant pump O-ring seal.
