Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,815HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 4815Original colors & callouts · Select to enlarge

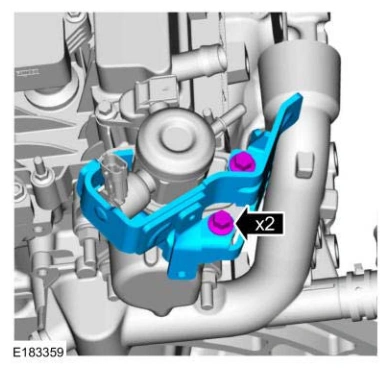

48. Remove the bolts and high-pressure fuel pump bracket.

Engine — original illustration 2, reference 4815Original colors & callouts · Select to enlarge

49. Remove the bolts and the high-pressure fuel pump.

Discard the bolts.
