Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,814HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 4814Original colors & callouts · Select to enlarge

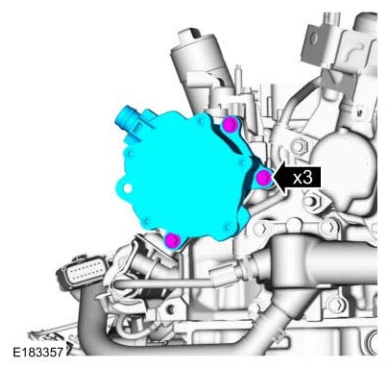

46. Remove the bolts and the brake vacuum pump.

Engine — original illustration 2, reference 4814Original colors & callouts · Select to enlarge

NOTE: To release the fuel pressure in the high pressure fuel tube, wrap the fuel injection pump flare nut with a shop towel to absorb any residual fuel pressure during the loosening of the fuel injection pump flare nut.

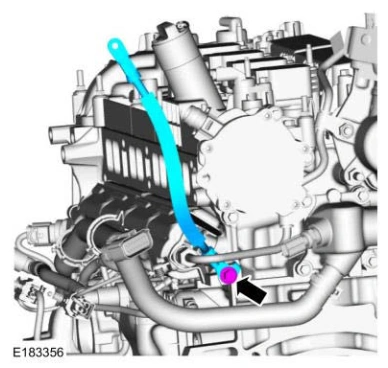

47. Remove the high pressure fuel tube nut and bolt.

Loosen the flare nuts and discard the fuel tube.
