Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,804HTML edition
← Chapter contentsManual collection

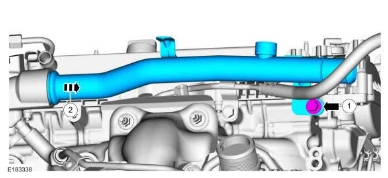

Remove the coolant tube bolt.

2. Remove the coolant tube.

Engine — original illustration 1, reference 4804Original colors & callouts · Select to enlarge

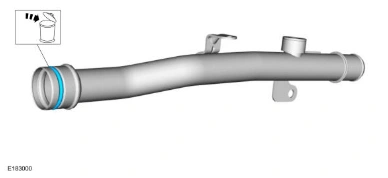

22. Remove and discard the coolant tube O-ring seal.

Engine — original illustration 2, reference 4804Original colors & callouts · Select to enlarge

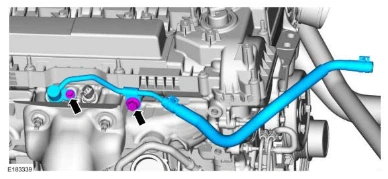

23. Remove the bolts and the coolant tube.

Engine — original illustration 3, reference 4804Original colors & callouts · Select to enlarge

24. Remove the nut for the coolant tube.

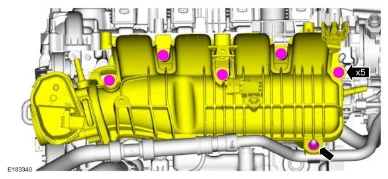

Remove the bolts and position intake manifold back.

Engine — original illustration 4, reference 4804Original colors & callouts · Select to enlarge
