Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,802HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 4802Original colors & callouts · Select to enlarge

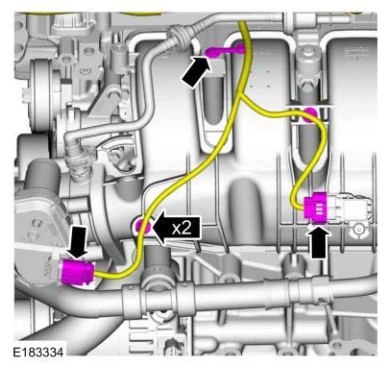

17. Disconnect the throttle body and MAPT electrical connectors.

Detach the wiring harness retainers.

Engine — original illustration 2, reference 4802Original colors & callouts · Select to enlarge

18. Disconnect the CMP sensor and EVAP canister purge valve electrical connectors.

Disconnect the ignition coil-on-plugs and VCT oil control solenoid sensor electrical connectors.

Detach the wiring harness retainer and remove the engine wiring harness.
