Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,803HTML edition
← Chapter contentsManual collection

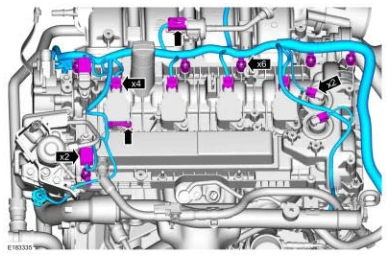

Engine — original illustration 1, reference 4803Original colors & callouts · Select to enlarge

19. Disconnect the EVAP canister purge valve quick release coupling.

Remove the bolt and the EVAP canister purge valve.

Remove the oil level indicator.

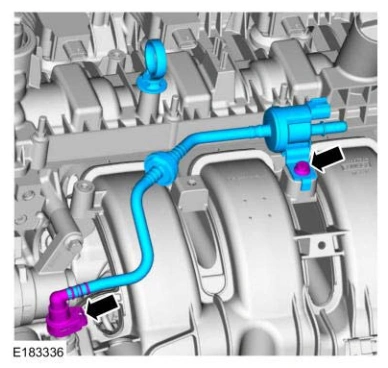

Engine — original illustration 2, reference 4803Original colors & callouts · Select to enlarge

20. Disconnect the crankcase vent tube from the valve cover.

Detach the crankcase vent tube retainer and remove.

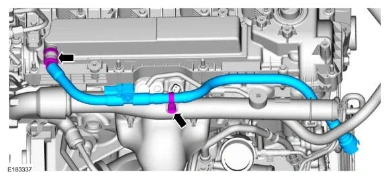

Engine — original illustration 3, reference 4803Original colors & callouts · Select to enlarge

21.

1.
