Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,800HTML edition
← Chapter contentsManual collection

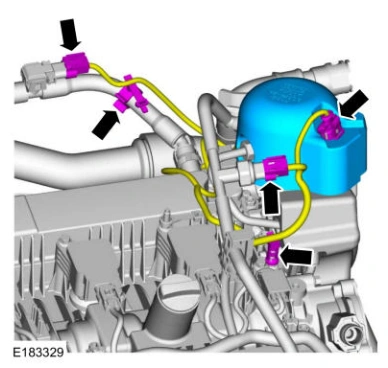

Engine — original illustration 1, reference 4800Original colors & callouts · Select to enlarge

13. Detach the fuel supply tube from the intake manifold retainer.

Disconnect the fuel supply tube quick release coupling from the high-pressure fuel pump. Refer to: QUICK RELEASE COUPLING - 2.3L EcoBoost (231kW/314PS).

Detach the retainer and remove the fuel supply tube.

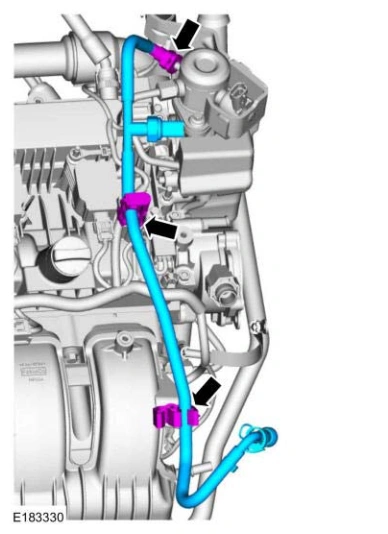

Engine — original illustration 2, reference 4800Original colors & callouts · Select to enlarge

14. Disconnect the oil pressure switch electrical connector.

Remove the bolts and the oil filter adapter.
