Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,797HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 4797Original colors & callouts · Select to enlarge

6. Remove the bolts and the A/C compressor mounting bracket.

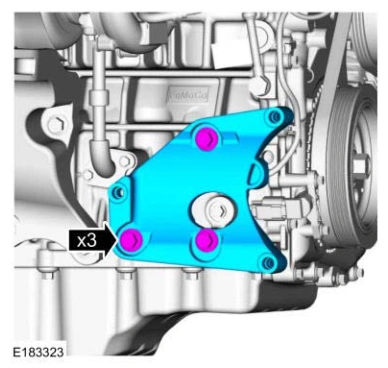

Engine — original illustration 2, reference 4797Original colors & callouts · Select to enlarge

7. Remove the bolts, stud bolt and the RH engine mount bracket.

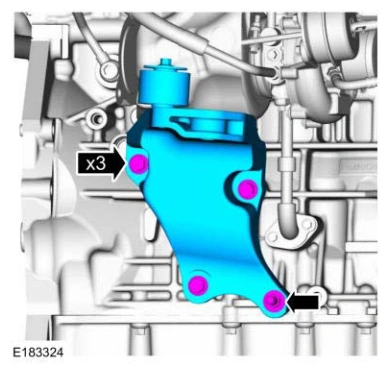

Engine — original illustration 3, reference 4797Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 4797

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
