Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4796

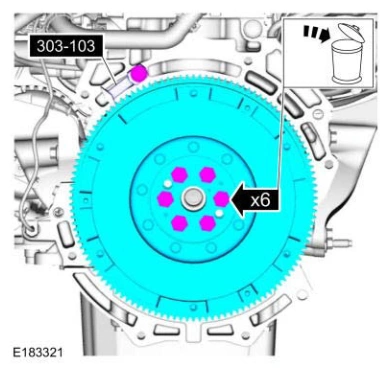

Install Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.

Remove the bolts and the flywheel.

Discard the bolts.

Engine — original illustration 1, reference 4796Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

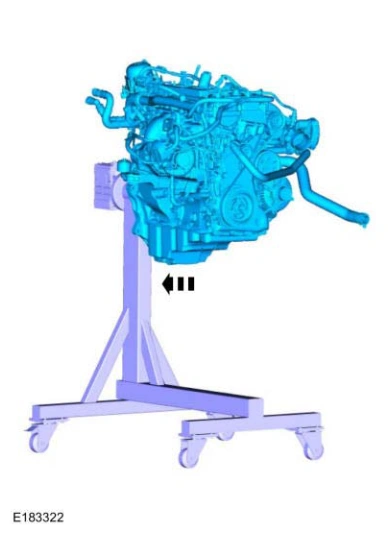

4. Install engine on the mounting stand.

Use the General Equipment: Mounting Stand

Engine — original illustration 2, reference 4796Original colors & callouts · Select to enlarge

5. Remove Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.
