Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,798HTML edition
← Chapter contentsManual collection

8. Remove the bolts, stud bolt and the LH engine mount bracket.

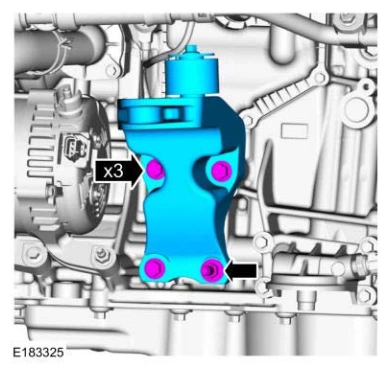

Engine — original illustration 1, reference 4798Original colors & callouts · Select to enlarge

9. Disconnect the CKP and vacuum valve electrical connectors.

Detach the wiring harness retainers.

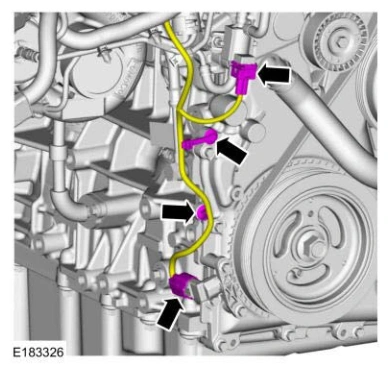

Engine — original illustration 2, reference 4798Original colors & callouts · Select to enlarge

10. Detach the wiring harness retainer.

Remove the bolt and position the ground wire harness aside.
