Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,801HTML edition
← Chapter contentsManual collection

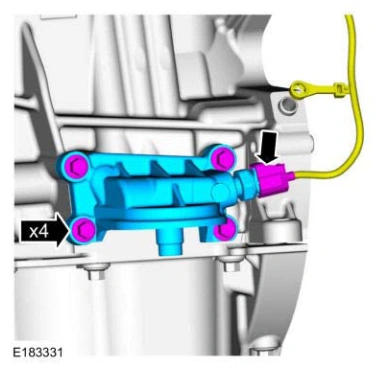

Engine — original illustration 1, reference 4801Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80

15. Detach the wiring harness retainers.

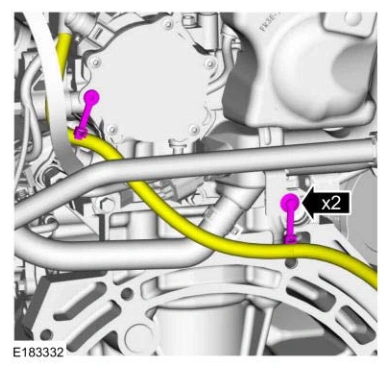

Engine — original illustration 2, reference 4801Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

16. Detach and disconnect the fuel injector harness electrical connector.

Disconnect the ECT harness electrical connector.

Detach the wiring harness retainer.

Ford_Mustang_all_2015-2017.pdf · source reference 4801
