Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,799HTML edition
← Chapter contentsManual collection

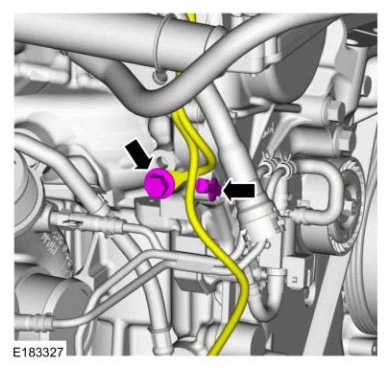

Engine — original illustration 1, reference 4799Original colors & callouts · Select to enlarge

11. Disconnect the CHT sensor electrical connector.

Detach the wiring harness retainers.

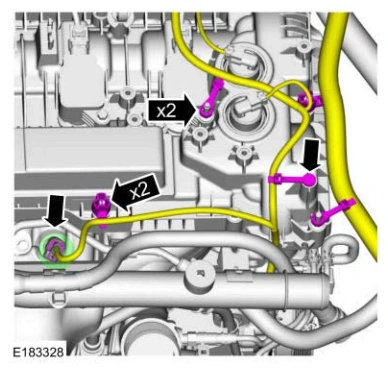

Engine — original illustration 2, reference 4799Original colors & callouts · Select to enlarge

12. Disconnect the high-pressure fuel pump, fuel supply tube pressure switch and crankcase vent tube electrical connectors.

Detach the wiring harness retainers.

Remove the high-pressure fuel pump cover.

Ford_Mustang_all_2015-2017.pdf · source reference 4799
