Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,805HTML edition
← Chapter contentsManual collection

25. Disconnect the PCV tube quick release coupling.

Detach the KS electrical connector retainers from the intake manifold.

Remove the intake manifold.

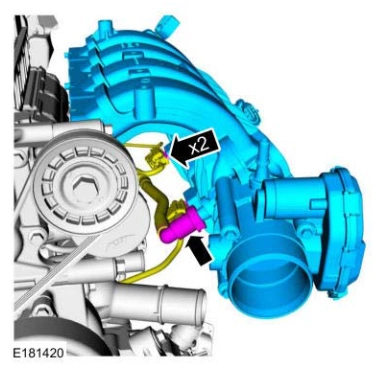

Engine — original illustration 1, reference 4805Original colors & callouts · Select to enlarge

26. Remove the retainer and the high-pressure fuel pump drive unit cover.

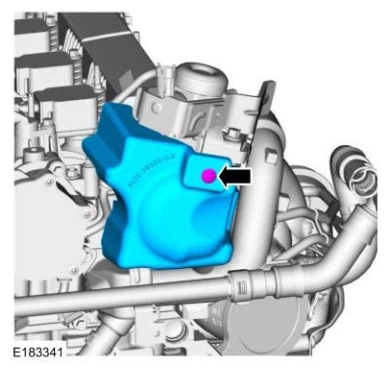

Engine — original illustration 2, reference 4805Original colors & callouts · Select to enlarge

27. Disconnect the coolant hose from thermostat housing.

Use the General Equipment: Hose Clamp Remover/Installer

Remove the nut and the coolant hose.
