Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,819HTML edition
← Chapter contentsManual collection

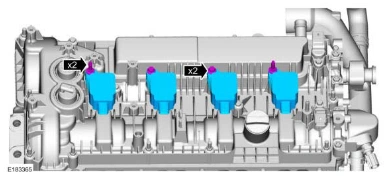

Engine — original illustration 1, reference 4819Original colors & callouts · Select to enlarge

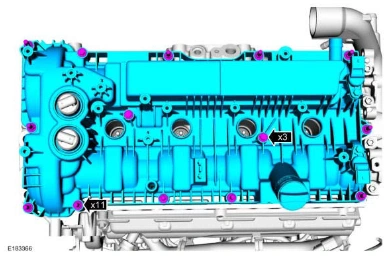

56. Loosen the fasteners and remove the valve cover.

Engine — original illustration 2, reference 4819Original colors & callouts · Select to enlarge

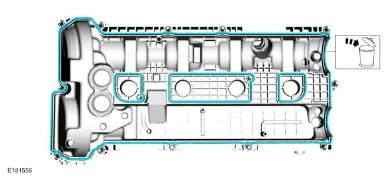

57. Remove and discard the valve cover gasket.

Engine — original illustration 3, reference 4819Original colors & callouts · Select to enlarge

58.

NOTE: The VCT oil control solenoid seals should only be replaced if they are damaged.

1. Inspect the VCT oil control solenoid seals for damaged.

2. If damaged, using the special tools, remove the VCT oil control solenoid seals and discard.

Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

Ford_Mustang_all_2015-2017.pdf · source reference 4819
