Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,822HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 4822Original colors & callouts · Select to enlarge

65. Remove the fuel rail shield.

Disconnect the fuel injectors and FRP sensor electrical connectors.

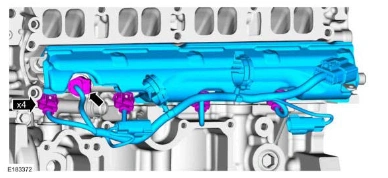

Engine — original illustration 2, reference 4822Original colors & callouts · Select to enlarge

NOTE: Pull out the fuel rails in the direction of the fuel injector axis or damage may occur to the fuel injectors.

NOTE: Use compressed air and remove any dirt or foreign material from the cylinder head, block and general surrounding area of the fuel rail and injectors.

NOTE: When removing the fuel rails, the fuel injectors may remain in the fuel rails but normally remain in the cylinder head and require the use of a Fuel Injector Remover tool to extract.

66. Remove the bolts and the fuel rail.

Discard the bolts.
