Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,826HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 4826Original colors & callouts · Select to enlarge

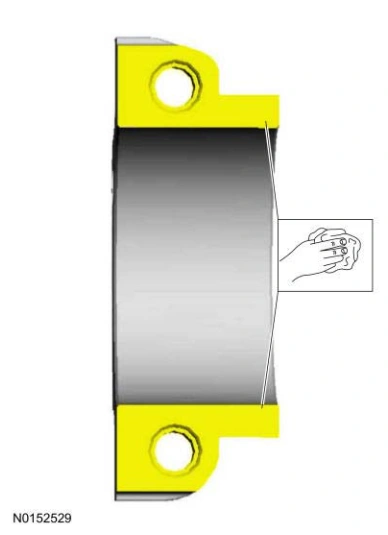

73. Clean the camshaft rear bearing cap.

Engine — original illustration 2, reference 4826Original colors & callouts · Select to enlarge

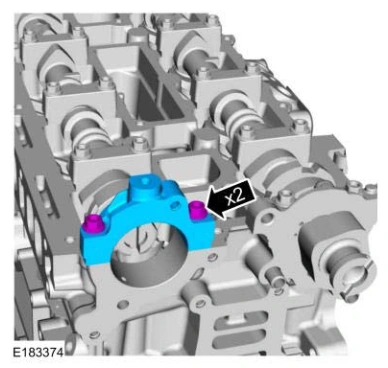

74. Remove the camshaft drive adapter.

Ford_Mustang_all_2015-2017.pdf · source reference 4826
