NOTE: The special tool will contact the crankshaft and prevent it from turning past TDC. However, the crankshaft can still be rotated in the counterclockwise direction. The crankshaft must remain at the TDC position during the crankshaft pulley removal and installation.
NOTE: The engine front cover is removed from graphic for clarity.

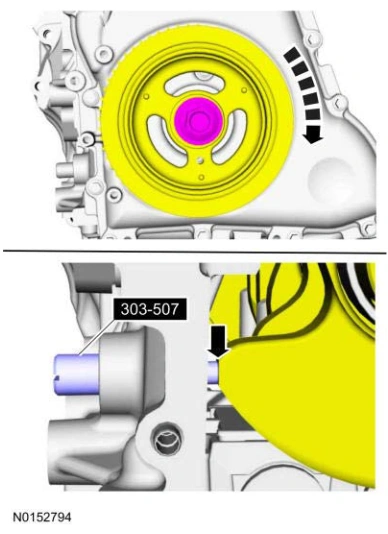

79. Rotate the crankshaft clockwise until it contacts the special tool.
Use Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.
NOTE: The Camshaft Alignment Tool is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.
NOTE: The camshaft timing slots are offset. If the Camshaft Alignment Tool cannot be installed, remove the TDC Timing Peg and rotate the crankshaft three-fourths of a revolution clockwise and repeat the previous 2 steps of this procedure.
80. Tighten the retainer
Install Special Service Tool: 303-1565 Alignment Tool, Camshaft.
