Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,833HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 4833Original colors & callouts · Select to enlarge

NOTE: Use an open-ended wrench to prevent the component from turning.

86. Loosen the bolt for the exhaust VCT unit.

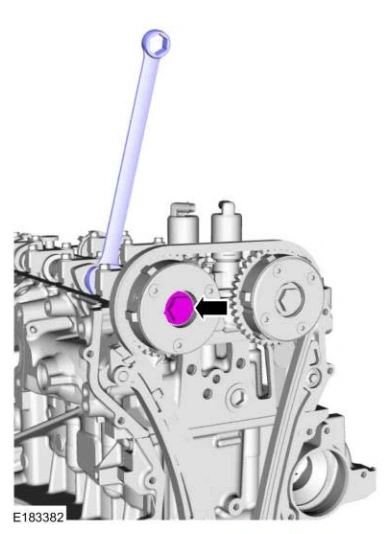

Engine — original illustration 2, reference 4833Original colors & callouts · Select to enlarge

NOTE: Use an open-ended wrench to prevent the component from turning.

87. Loosen the bolt for the intake VCT unit.

Ford_Mustang_all_2015-2017.pdf · source reference 4833
