Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4902

Lubricate the camshaft journals with clean engine oil and install the front camshaft bearing cap and bolts.

Material

: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W30-QSP (U.S.) (WSS-M2C946-A)

Torque:

Stage 1: 62 lb.in (7 Nm)

Stage 2: 142 lb.in (16 Nm)

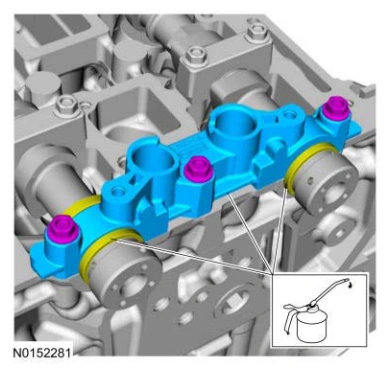

Engine — original illustration 1, reference 4902Original colors & callouts · Select to enlarge

53.

1. Using the flats of the camshaft, rotate the camshaft to place the cam lobe at base circle, with the lobe pointed away from the tappet.

2. Use a feeler gauge to measure the clearance of each valve and record its location.

Use the General Equipment: Feeler Gauge

3. Repeat to measure all of the lobe/tappet clearances.
