NOTE: Rotating the crankshaft will position the engine at TDC and allow you to install the camshafts in the same position as noted during the disassembly.

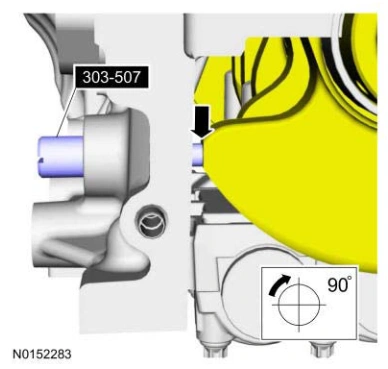

58. Rotate the crankshaft clockwise 90 degrees so the crankshaft contacts the special tool.

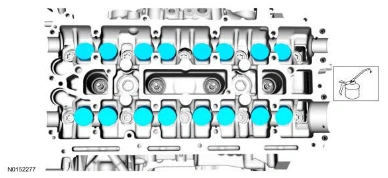

59. If necessary, replace any tappets with the correct tappets selected during the valve clearance check and lubricate with clean engine oil.
Material
: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W30-QSP (U.S.) (WSS-M2C946-A)
NOTE: The exhaust camshaft rear bearing cap must be secured within 10 minutes of silicone sealant application. If the bearing cap is not secured within 10 minutes, the gasket maker must be removed and the sealing area cleaned.
NOTE: Do not allow gasket maker to enter the camshaft bearing journal. If gasket maker is applied to the camshaft bearing journal, the journal and sealing area must be cleaned.
60.
