Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,908HTML edition
← Chapter contentsManual collection

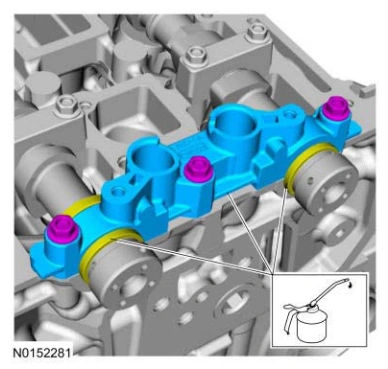

Engine — original illustration 1, reference 4908Original colors & callouts · Select to enlarge

63. Install the VCT oil control solenoids and the bolts.

Torque

: 89 lb.in (10 Nm)

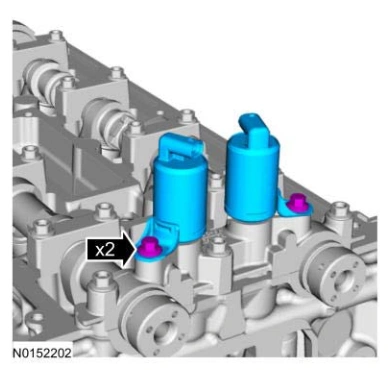

Engine — original illustration 2, reference 4908Original colors & callouts · Select to enlarge

NOTE: The special tool is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.

64. Install Special Service Tool: 303-1565 Alignment Tool, Camshaft.
