Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,910HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 4910Original colors & callouts · Select to enlarge

NOTE: If the timing chain tensioner plunger and ratchet assembly are not pinned in the compressed position, follow the next 4 steps.

NOTE: Do not compress the ratchet assembly. This will damage the ratchet assembly.

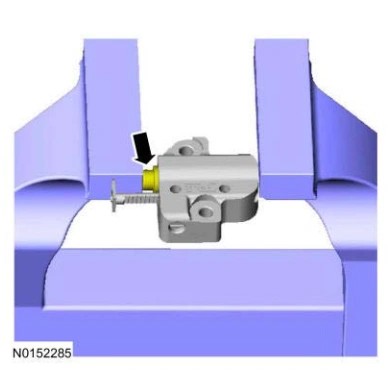

67. Using the edge of a vise, compress the timing chain tensioner plunger.

Use the General Equipment: Vise

Engine — original illustration 2, reference 4910Original colors & callouts · Select to enlarge

68.
