Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,913HTML edition
← Chapter contentsManual collection

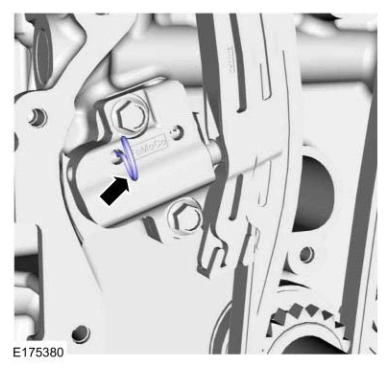

Engine — original illustration 1, reference 4913Original colors & callouts · Select to enlarge

NOTE: Use an open-ended wrench to prevent the component from turning.

73. Tighten the exhaust VCT unit bolt in 2 stages.

Torque:

Stage 1: 30 lb.ft (40 Nm)

Stage 2: 60°

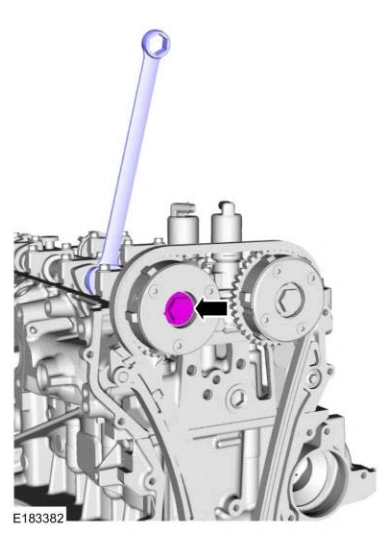

Engine — original illustration 2, reference 4913Original colors & callouts · Select to enlarge

NOTE: Use an open-ended wrench to prevent the component from turning.

74.
