Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4914

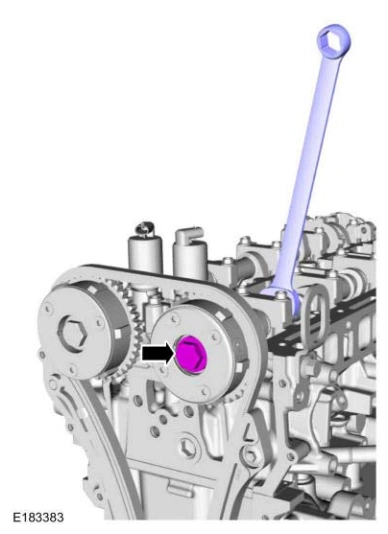

Tighten the intake VCT unit bolt in 2 stages.

Torque:

Stage 1: 30 lb.ft (40 Nm)

Stage 2: 60°

Engine — original illustration 1, reference 4914Original colors & callouts · Select to enlarge

NOTE: The engine front cover must be secured within 10 minutes of Silicone Gasket and Sealant application. If the valve cover is not secured within 10 minutes, the silicone sealant must be removed and the sealing area cleaned.

75. Apply silicone sealant.

Material

: Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Material

: Motorcraft® Metal Surface Prep / ZC-31-B
