Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,917HTML edition
← Chapter contentsManual collection

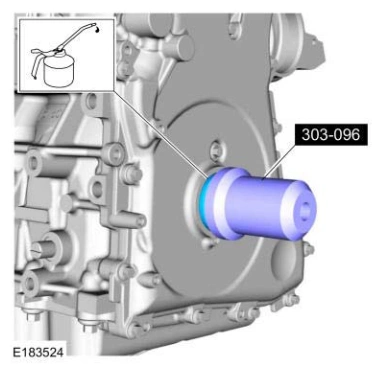

Engine — original illustration 1, reference 4917Original colors & callouts · Select to enlarge

NOTE: Before installation, clean and inspect the diamond washer for any damage. If damaged is evident, replace the diamond washer. If no damage, the diamond washer is to be reused. If the diamond washer is not installed, engine damage may occur.

79. Install the diamond washer onto the crankshaft.

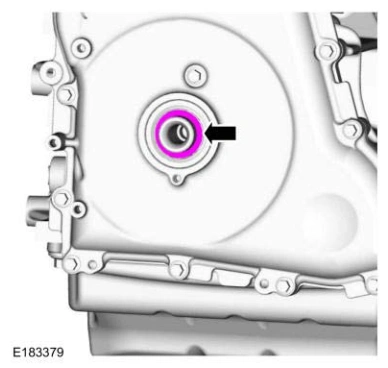

Engine — original illustration 2, reference 4917Original colors & callouts · Select to enlarge

80. Lubricate the crankshaft pulley with clean engine oil.

Material

: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W30-QSP (U.S.) (WSS-M2C946-A)

Ford_Mustang_all_2015-2017.pdf · source reference 4917
