Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,918HTML edition
← Chapter contentsManual collection

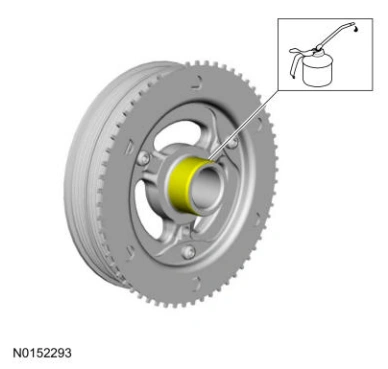

Engine — original illustration 1, reference 4918Original colors & callouts · Select to enlarge

81. Install the crankshaft pulley.

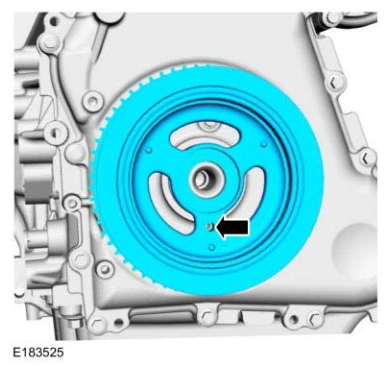

Engine — original illustration 2, reference 4918Original colors & callouts · Select to enlarge

NOTE: This step will correctly align the crankshaft pulley to the crankshaft.

82. Install an M6 bolt.

Ford_Mustang_all_2015-2017.pdf · source reference 4918
