Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,921HTML edition
← Chapter contentsManual collection

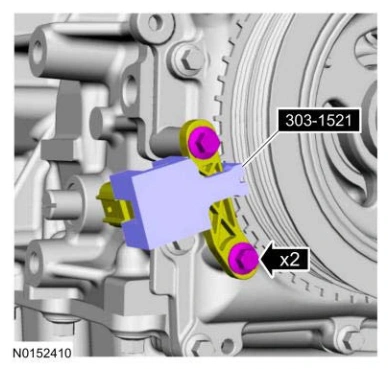

Engine — original illustration 1, reference 4921Original colors & callouts · Select to enlarge

87. Remove Special Service Tool: 303-1521 Alignment Tool, Crankshaft Position Sensor.

Engine — original illustration 2, reference 4921Original colors & callouts · Select to enlarge

88. Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

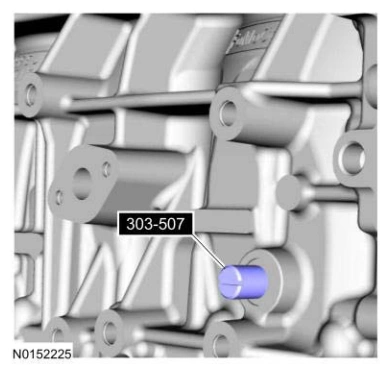

Engine — original illustration 3, reference 4921Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 4921
