Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4922

89. Remove Special Service Tool: 303-1565 Alignment Tool, Camshaft.

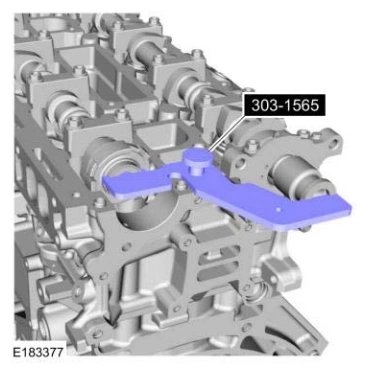

Engine — original illustration 1, reference 4922Original colors & callouts · Select to enlarge

90. Install the engine plug bolt.

Torque

: 177 lb.in (20 Nm)

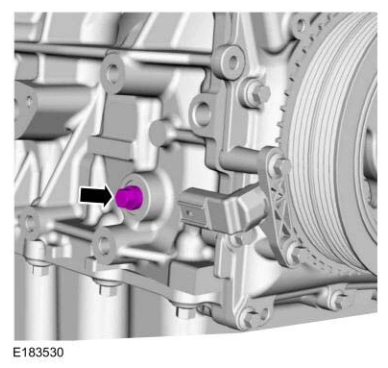

Engine — original illustration 2, reference 4922Original colors & callouts · Select to enlarge

91. Install the camshaft drive adapter.

Torque

: 46 lb.ft (63 Nm)
