Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,920HTML edition
← Chapter contentsManual collection

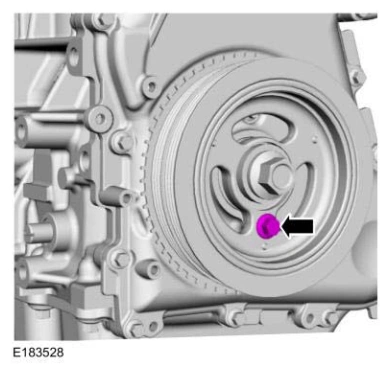

Engine — original illustration 1, reference 4920Original colors & callouts · Select to enlarge

NOTE: Do not tighten the CKP sensor bolts at this time.

85. Install the CKP sensor and the bolts finger-tight.

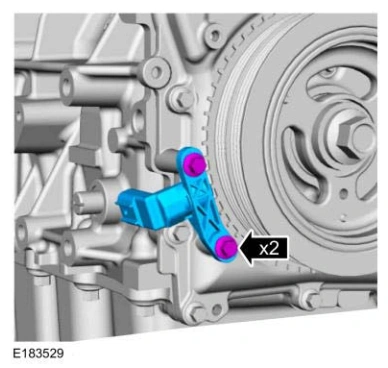

Engine — original illustration 2, reference 4920Original colors & callouts · Select to enlarge

86. Install the Special Tool onto the CKP sensor and the tooth of the crankshaft pulley trigger wheel.

Use Special Service Tool: 303-1521 Alignment Tool, Crankshaft Position Sensor.

Torque

: 62 lb.in (7 Nm)

Ford_Mustang_all_2015-2017.pdf · source reference 4920
