Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4923

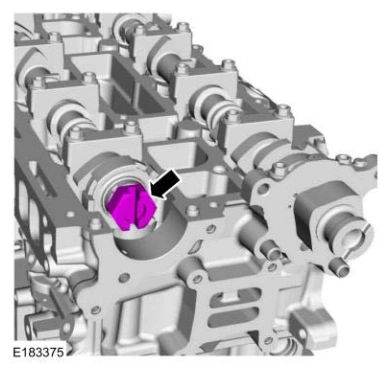

Engine — original illustration 1, reference 4923Original colors & callouts · Select to enlarge

NOTE: The intake camshaft rear bearing cap must be secured within 10 minutes of gasket maker application. If the bearing cap is not secured within 10 minutes, the gasket maker must be removed and the sealing area cleaned.

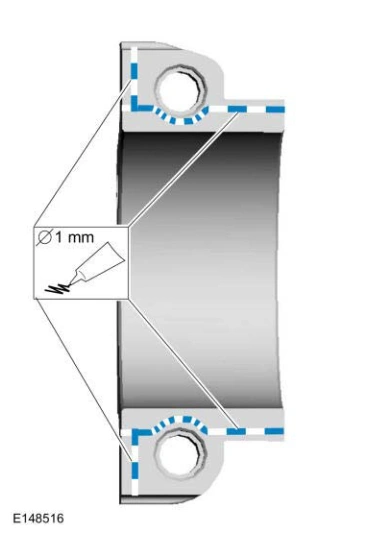

92. Apply a 1 mm bead of gasket maker.

Material

: Gasket Maker / TA-16 (WSK-M2G348-A5)

Material

: Motorcraft® Metal Surface Prep / ZC-31-B

Engine — original illustration 2, reference 4923Original colors & callouts · Select to enlarge
