NOTE: Do not lubricate the new lower Teflon® fuel injector seals.

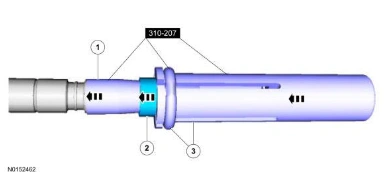

1. Use Special Service Tool: 310-207 Installer, Fuel Injector Seal Assembly.
NOTE: Once the Teflon® seal is installed on the Teflon® Seal Guide, it should immediately be installed onto the fuel injector to avoid excessive expansion of the Teflon® seal.
2. Make sure that new lower fuel injector Teflon® seals are installed.
Use Special Service Tool: 310-207 Installer, Fuel Injector Seal Assembly.
3. Using the special tool, slide the Teflon® seals off of the Teflon® Seal Guide and into the groove on the fuel injectors.
NOTE: Make sure the Teflon® seal is fully seated in the groove on the fuel injector before sizing the Teflon® seal.
NOTE: Install the fuel injectors into the cylinder head within 15 minutes of sizing the seals due to Teflon® seal expansion.
96.
1. Some massaging of the Teflon® seal with your fingers before the special tool is installed will aid in installing the special tool.
2. Position the Teflon® seal sizer tool with the larger opening towards the Teflon® seal. Push while turning the Teflon® seal sizer tool 180 degrees.
